FEATURES

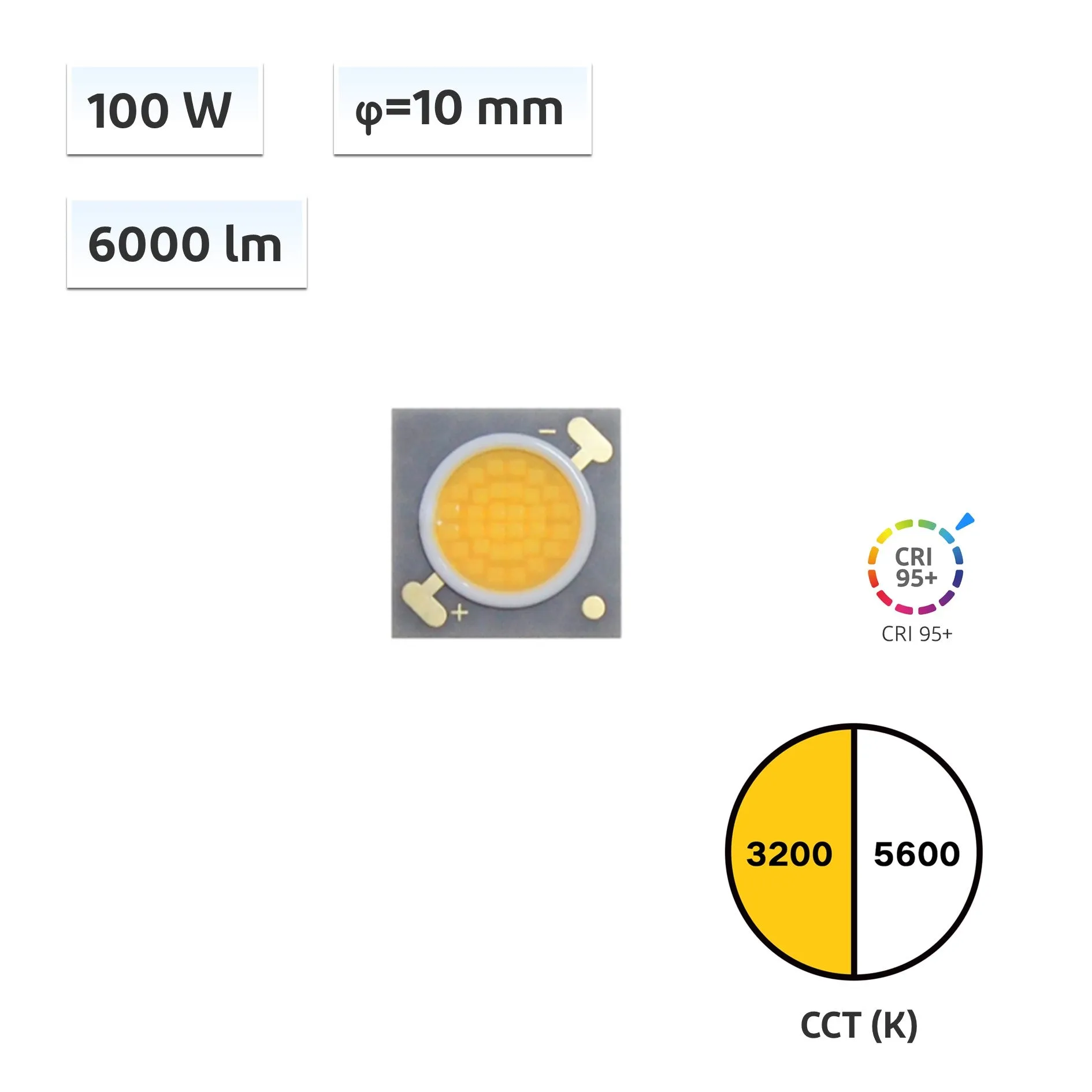

• CRI 95 light quality
• 100W nominal power consumption

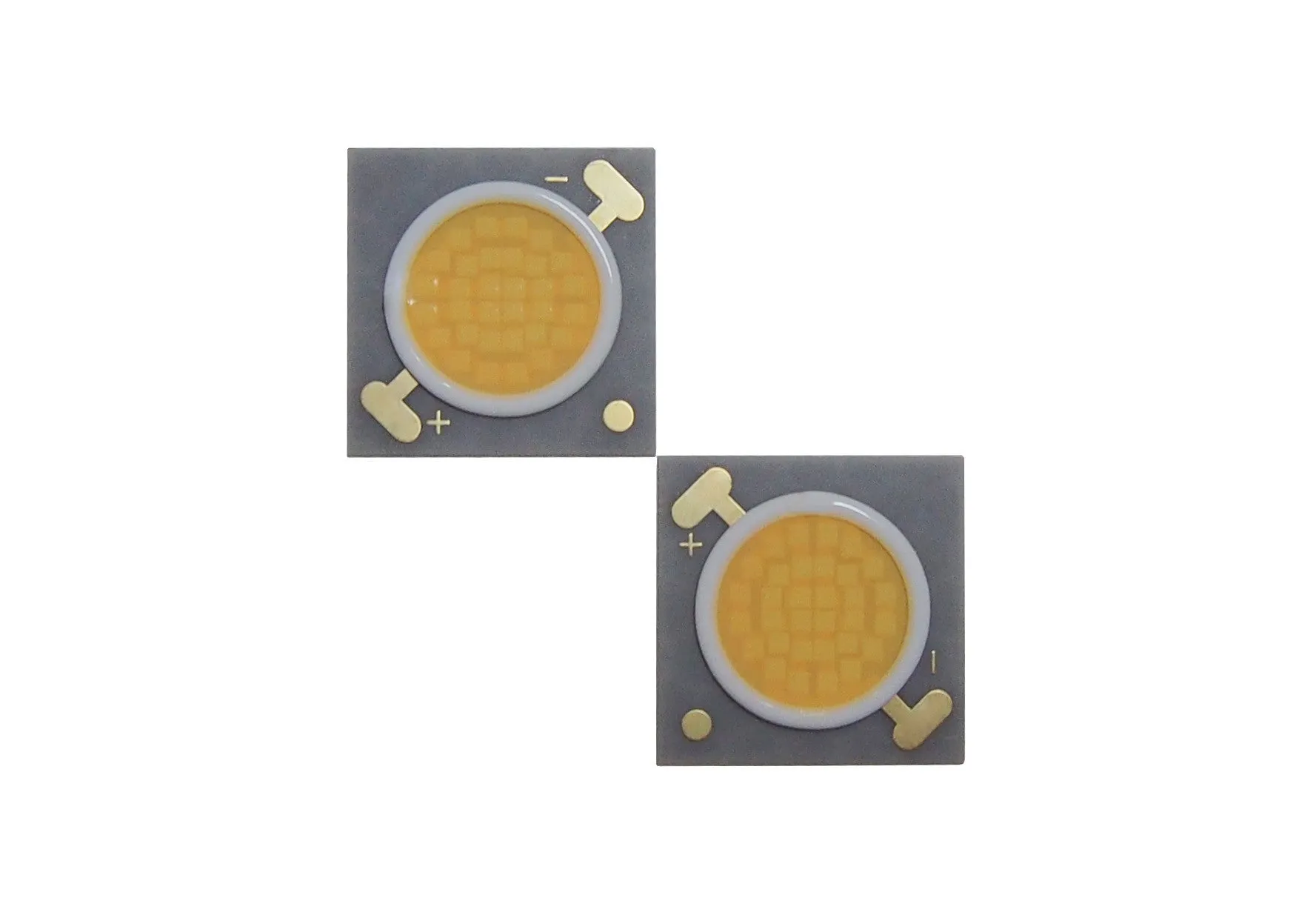

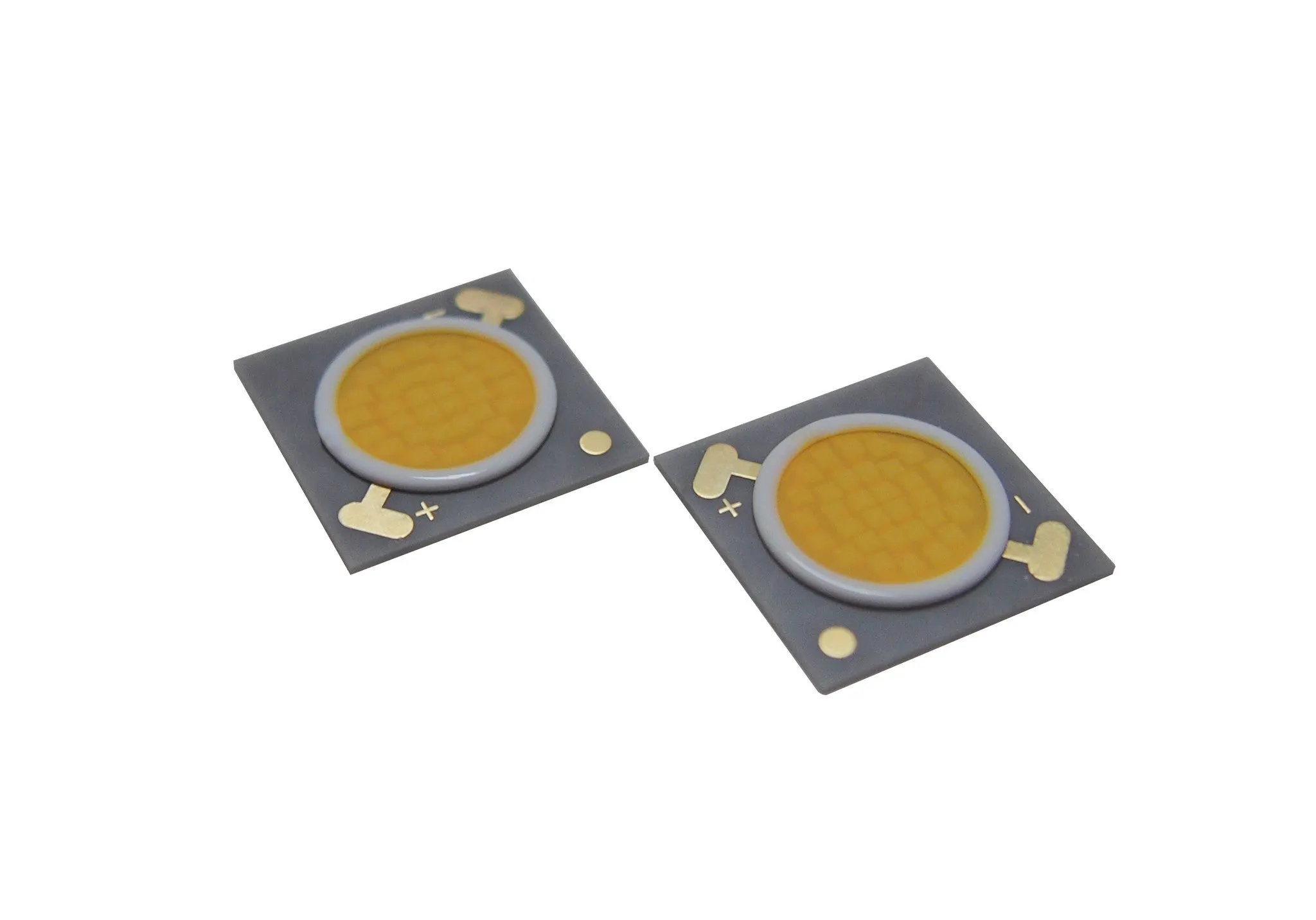

• 16mm×16mm× 0.38mm chip-on-board LED

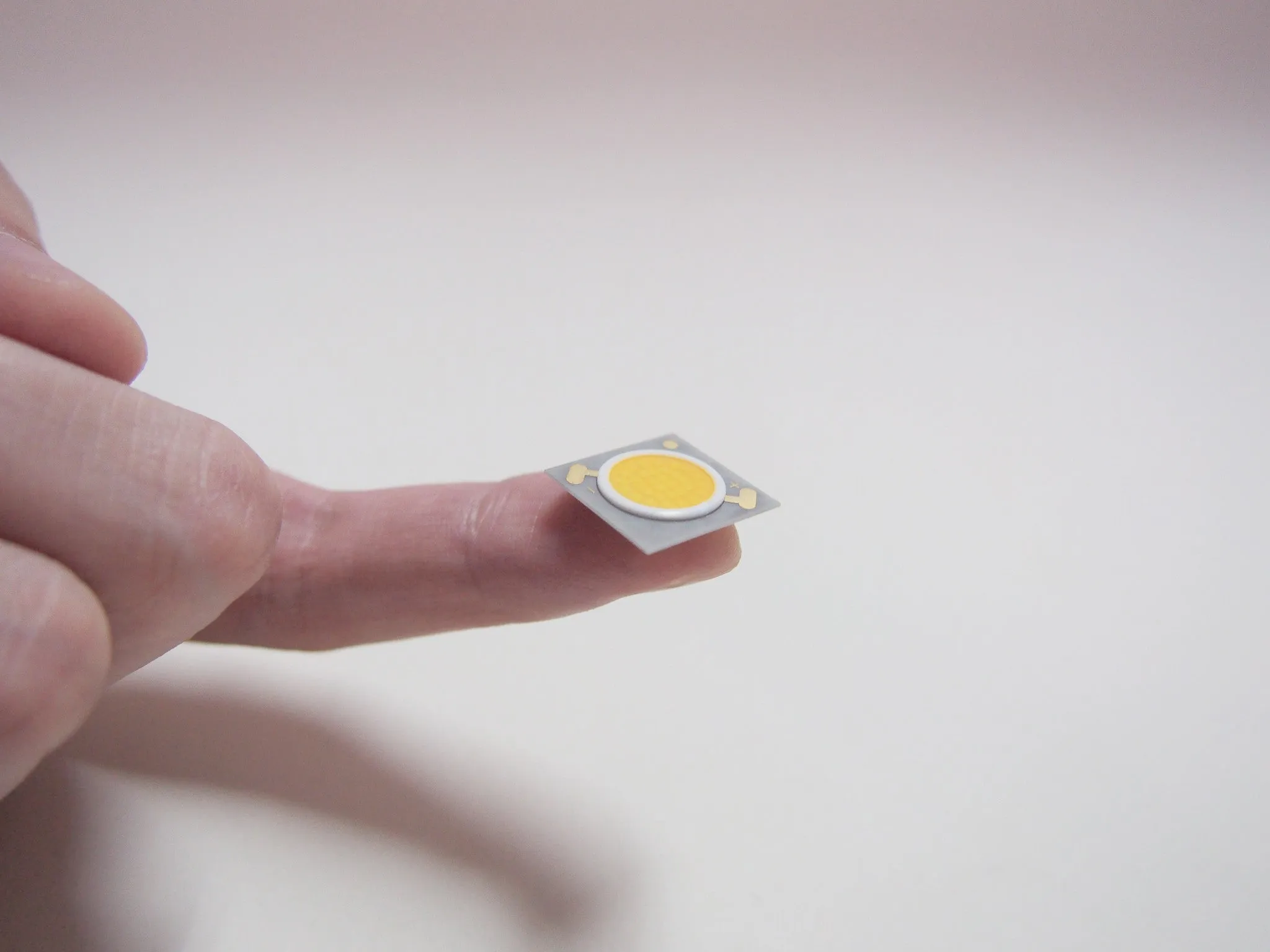

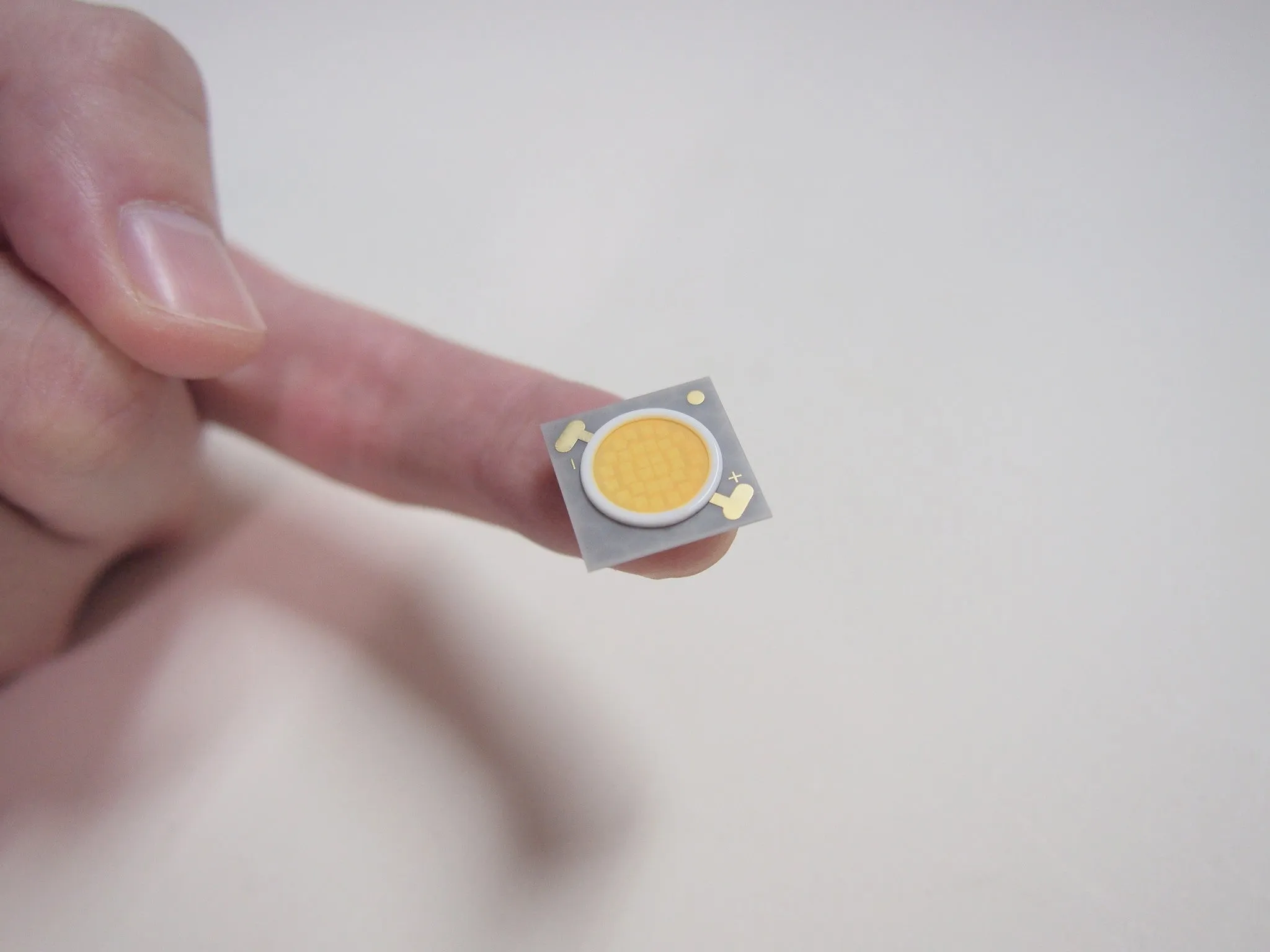

• φ9mm super compact light-emitting surface
• Up to 6000lm lumen output
• High lumen density utilizing flip-chip technology

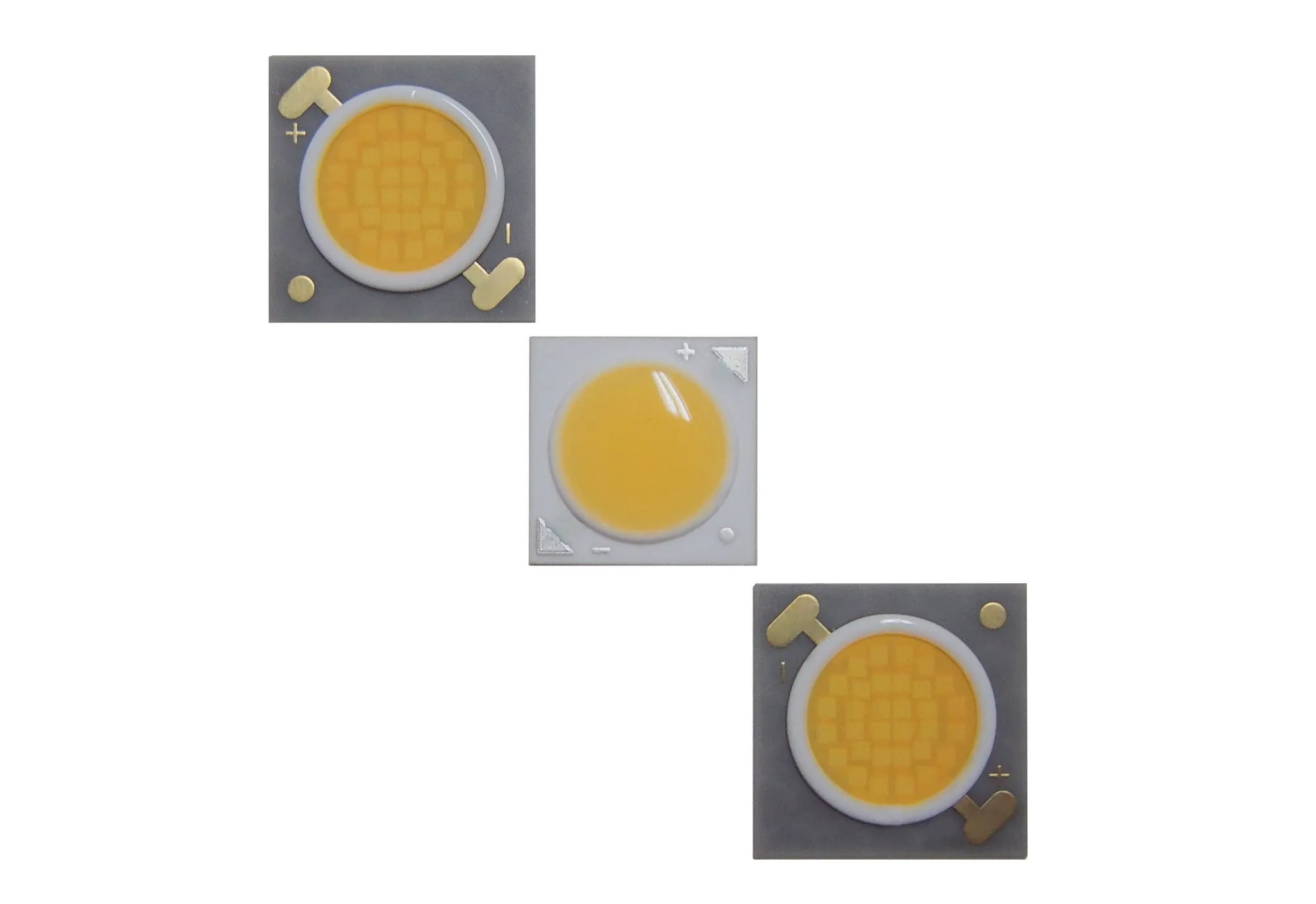

• The 160H COB has been upgraded, where is replaced with.

• OVERVIEW

• SPECIFICATIONS

• ACCESSORIES

• INSTALLATION

• APPLICATIONS

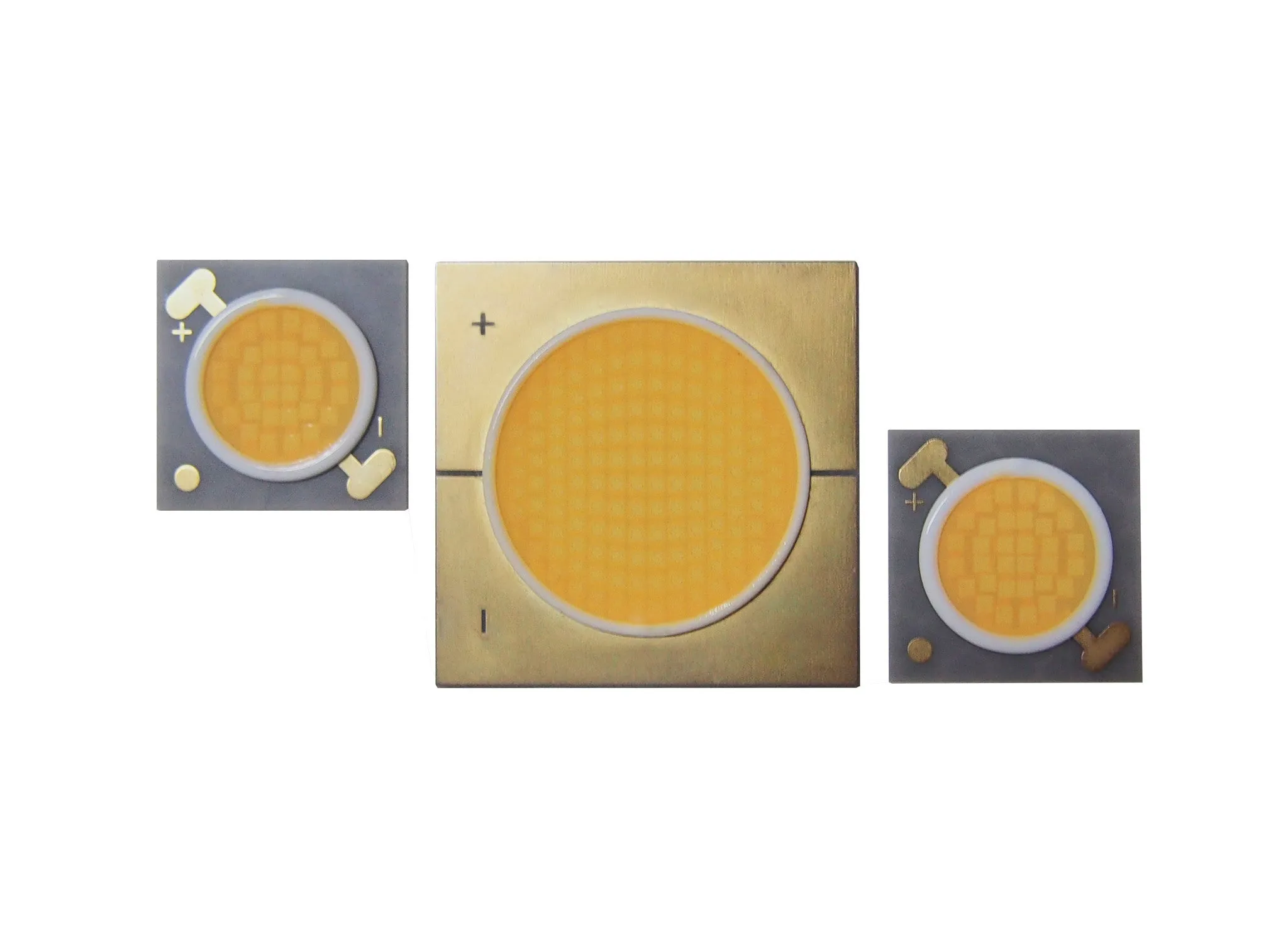

• YUJILEDS compact-LES (light-emitting surface) 160H COB offers a 100W power drive and remarkably reduced the dimensions. The diameter of its LES has scaled down to 9mm from the 40mm typically specified in conventional 100W COB packages.Moreover, it provides exceptionally high light intensity and even higher center beam candle power (CBCP). These offer compact and bright lighting solutions for spotlights as well as high bay lights. Providing 95 high CRI, this high-power LED COB can be used in a variety of applications demanding high color quality and high density light output.

• Power	100W
  Dimensions	16mm×16mm×0.38mm
  CCT	3200K	5600K
  Luminous Flux	5600lm	6000lm
  CRI (Ra)	95
  SDCM	≤3 steps
  Viewing Angle	120°
  Forward Current	4A
  Forward Voltage	23V - 27V
  Packaging	1pc
  Warranty	3 years

• Power Supply	Constant current DC power supply capable of providing up to 4000mA in the 15 - 30 V range.
  Heat Sink	Please refer to our blog post telling you how to choose an appropriate heat sink for your COB:?
  Thermal Grease	This COB has super high-power density and requires sufficient thermal management. We suggest using thermal grease with high thermal conductivity. We recommendShinEtsu-X23-7762.

• NOTICE: LEDs are current-sensitive devices and overcurrent may cause fatal damage to them. Please make sure you are using a professional and compatible LED power supply with overcurrent protection. Tuning the current from a small flow gradually is also a good practice to avoid switch-on surge current.

• -Spot lights

  -Track lights

  -Machinery lighting

  -Scanner lighting
